10 Ton Diesel Garbage Transport Truck 4x2 Hook Lift Waste Truck

10 Ton Diesel Garbage Transport Truck 4x2 Hook Lift Waste Truck

10 Ton Garbage Transport Truck

Diesel Garbage Transport Truck

4x2 Hook Lift Waste Truck

Place of Origin:

Suizhou city, Hubei province

Brand Name:

CLW

Certification:

ISO, CCC

Model Number:

CLW5160ZKXD3

Contact Us
Request A Quote
Product Details
Product Name:
Dongfeng 10 Tons Hook Lift Garbage Truck
Overall Dimension:
7300×2470×2900mm
Volume:
10 Tons
Transmission Type:
Manual
Fuel Type:
Diesel
Color & Logo:
Per Customer Requirement
Highlight:

10 Ton Garbage Transport Truck

,

Diesel Garbage Transport Truck

,

4x2 Hook Lift Waste Truck

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD22,500-USD25,000
Packaging Details
Nude, ship by roll roll ship or bulk ship
Delivery Time
20 working days after deposit received
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
2000 units per year
Product Description

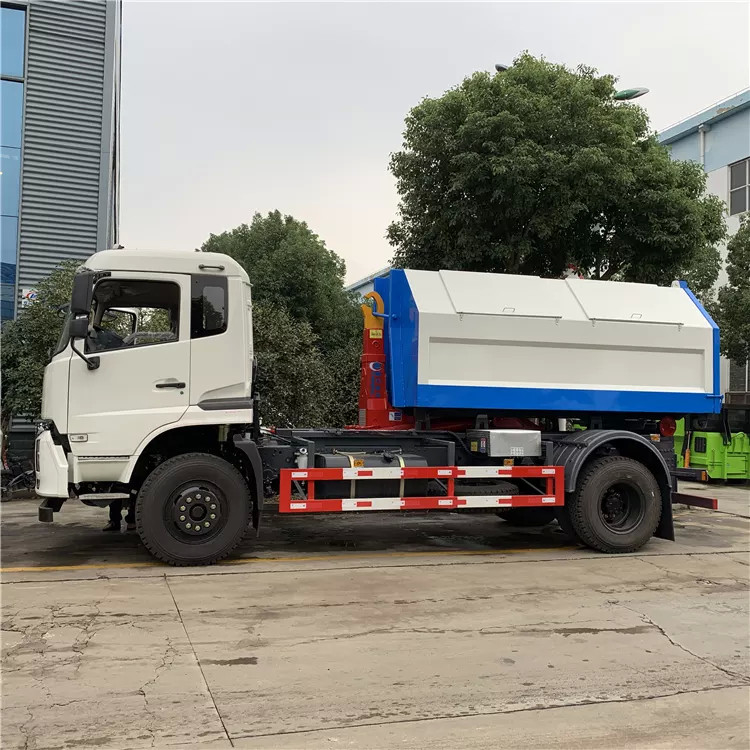

10 Tons DONGFENG 4x2 Hook Lift Garbage Truck Waste Transport Truck



Desciption:



A 10-ton diesel garbage transport truck with a 4x2 configuration and a hook lift system is a specialized vehicle designed for efficiently collecting and transporting solid waste. Here are some key features and considerations typically associated with such a truck:


Capacity: The truck is designed to handle up to 10 tons of solid waste, making it suitable for municipal waste collection, industrial waste, or commercial waste disposal.



Diesel Engine: Diesel engines are commonly used in heavy-duty trucks due to their torque, durability, and fuel efficiency compared to gasoline engines. They provide the necessary power for hauling heavy loads and operating in various conditions.



4x2 Configuration: This refers to the truck having two axles and only the rear axle being powered (rear-wheel drive). This configuration strikes a balance between payload capacity, maneuverability, and cost.



Hook Lift System: The hook lift system allows for efficient loading, unloading, and transport of waste containers or bins. It involves a hydraulic hook mechanism that can lift and lower containers onto and off the truck bed.



Safety and Durability: Given the nature of waste collection operations, these trucks are built robustly to withstand heavy use and rough terrains. Safety features such as reinforced frames, anti-slip steps, and ergonomic cabin design are often included.



Hydraulic Systems: Apart from the hook lift mechanism, hydraulic systems may also be used for other functionalities such as stabilizers, compaction equipment (if applicable), and tipping mechanisms for emptying containers.



Driver Comfort and Control: Modern trucks prioritize driver comfort with features like air-conditioned cabins, adjustable seats, ergonomic controls, and advanced instrumentation for monitoring vehicle performance and waste collection metrics.



Regulatory Compliance: Trucks used for waste transport must adhere to local regulations regarding emissions, noise levels, safety standards, and waste handling procedures. Compliance with these regulations



Specification:

Item unit parameter
Vehicle model   CLW5160ZKXD3 Arm-roll Garbage Truck
Chassis model   DFL1160BX
Overall dimensions mm 7300×2470×2900
  Fact cubage L 12000
Mass in working order kg Appro×6595
Wheel base mm 4500
F/R track base 1940/1860
Approach/departure angle ° 25/6
Exhaust/hp ml/kw 5900/140
Max speed km/h 90
Tire specification 10.00R20 Engine type B190-33
Traction system 4×2 transmission 6-speed with over drive
Number of axles 2 Electric system 24v
Operation control system Electrically hydraulic control Allowable passengers in cab 3
Equipment

Equipped with dustbin, hydraulic system and operating system

Equipped with one advanced double acting hydrocylinders

One vehicle can cooperate with several dustbins to improve the ability of cycle operation.cycling time<60s

Engine Dongfeng Cummins diesel engine,190 hp
Production cycle 20-25 days
Warranty 12 month,from the date of supply



Application:
10 Ton Diesel Garbage Transport Truck 4x2 Hook Lift Waste Truck 010 Ton Diesel Garbage Transport Truck 4x2 Hook Lift Waste Truck 110 Ton Diesel Garbage Transport Truck 4x2 Hook Lift Waste Truck 2



Our Services

1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.

2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.

3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.

4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.

5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.



FAQ

1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.



2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.



3. Delivery time: 15-20 working days after full payment is received.



4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.



We highly recommend this compactor garbage truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
