6000 Gallon Fuel Tank Truck HOWO 20000L Diesel Oil Transport Truck
| Product name: | HOWO 20m3 Oil Tank Truck | overall dimension: | 10350×2496×3350 Mm |
| Tank material: | Q235 Carbon Steel | Tank capacity: | 20000L |
| Fuel type: | Diesel | Color & logo: | Per Customer Requirement |
| High Light: | 6000 Gallon Fuel Tank Truck,Fuel Tank Truck HOWO,20000L Diesel Transport Truck |
||
6000 Gallon Fuel Tank Truck HOWO 20000 Liters Diesel Oil Transport Truck
Desciption:

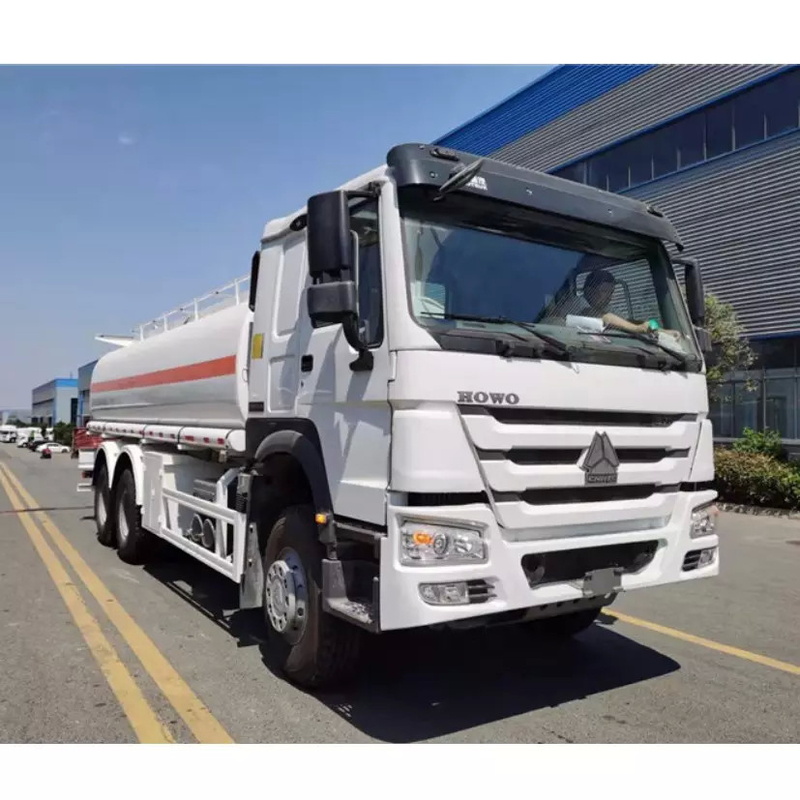

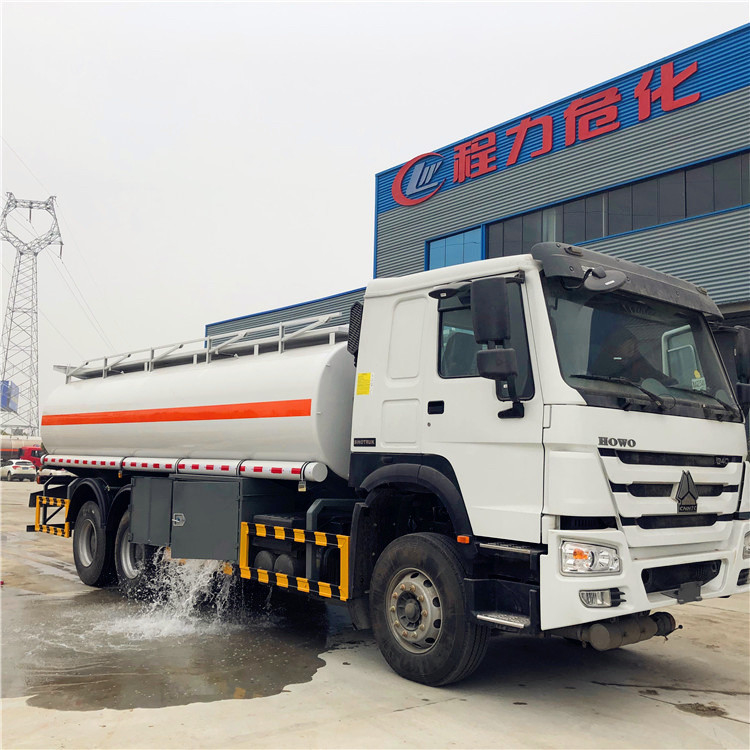

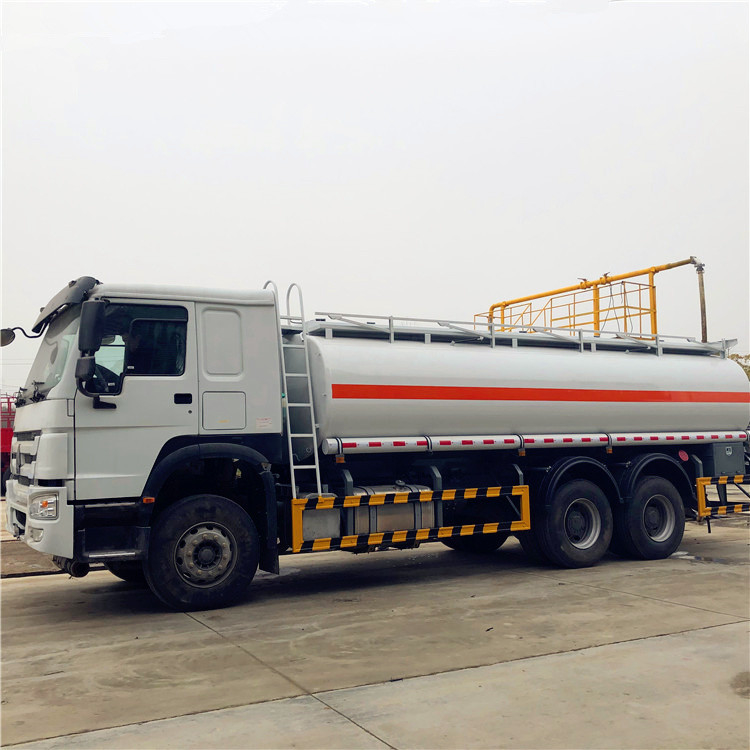

This SINOTRUK HOWO 6x4 oil tank fuel tanker truck is widely used for oil transportation, the tanker is made of high quality carbon steel plate, with 371hp diesel engine, we can add oil pump, fuel dispenser, flow meter, oil and gas recovery system, bottom loading system, Level gauge, European standard manhole cover and emergency valves according to your requirements.
Tank material: Carbon steel/stainless steel/aluminum alloy optional
Color and logo per customer needs
Specification:
|
Name
|
SINOTRUK HOWO 20M3 Fuel Oil Tank Truck
|
|
Dimension(LxWxH)
|
10350×2496×3350 mm
|
|
Total Mass
|
24500 Kg
|
|
Rated Payload
|
15000 Kg
|
|
Cerb Weight
|
11250 Kg
|
|
Passenger
|
3
|
|
Approach/Departure Angle
|
16/12
|
|
The Parameters of Chassis
|
|
|
Manufacture/Model
|
HOWO/ZZ1257N4647D1
|
|
Driving Type
|
6*4 left/right hand drive
|
|
Wheel Base
|
4600 + 1350mm
|
|
Front/Rear Track
|
2022/1830(mm)
|
|
Tyre
|
12R22.5, 10+1 spare tire
|
|
Front/Rear Suspension
|
1500/2900(mm)
|
|
Leaf Spring Number
|
4/-,4/12,10/-,10/12
|
|
The Paremeters of Engine
|
|
|
Engine Model
|
D10.34-40
|
|
Rated Power
|
340hp
|
|
Fuel Type
|
Diesel oil
|
|
Displacement/Capacity
|
9726ml
|
|
Emission Standard
|
Euro 3/4/5
|
|
Manufacturer
|
China Heavy Duty Group Co., Ltd.
|
|
The Parameters of Equipment
|
|
|
Color/Logo
|
Customizable
|
|
Material
|
Carbon steel (optional with stainless steel, aluminum alloy)
|
|
Function
|
Fuel/oil/diesel Transporting and refueling, etc.
|
|
Volume of Tank
|
20000L
|
|
Thickness
|
5mm
|
|
Equipment
|

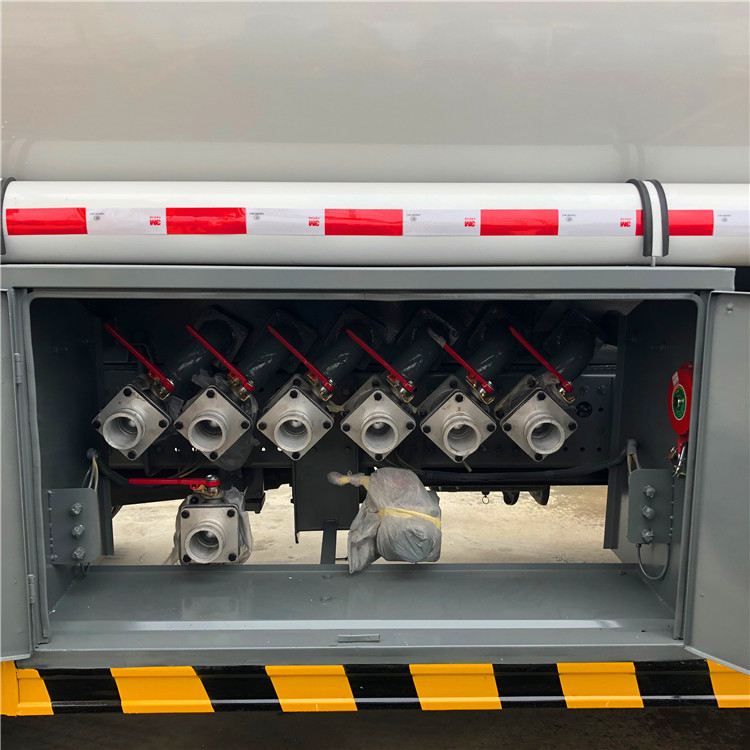

1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.
2. Tank divided into 6 compartments, each discharge valve for each compartment. 3. European standard man hole cover and air emergency valve for each compartment. 4. Equipped with folding barrier on top of the tank. 5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender. |
1. Factory Supply:
a. one of the biggest and professional special using truck manufacturers in china,
b. more than 300 kinds of special truck for your needing.
2. OEM Ability: produce according to your demand, material, size, color and logo are optional for you.
3. Good Quality:
a. has solid technology, advanced equipments; reliant quality, flexible modes of operation and strict quality control system,
b. passed the ISO9001-2008 and the 3C (China Compulsory Certification),
c. our brand is china famous brand with good reputation in the market.
4. Good Service: you can contact us by 24-hour hotline or whatsapp or email.
5. Fast Delivery: 15-20 working days after payment, safe and quick delivery.
1. Price term: FOB Shanghai, China or CIF or DAF, according to customers' requirements.
2. Payment: 30-50% deposit after order confirmation, balance should be paid before delivery. All by T/T.
3. Delivery time: 15-20 working days after full payment is received.
4. Standard Steering: Left-hand drive, if you need Right-hand drive, please inform us, will make special order for you.
We highly recommend this fuel tank truck. It's in excellent condition with good quality and competitive price. For further information, please feel free to contact me, we will offer our best service.
